Electrical · E-W29ZH

Thickener Process Control and Motor Schematics

About this detail

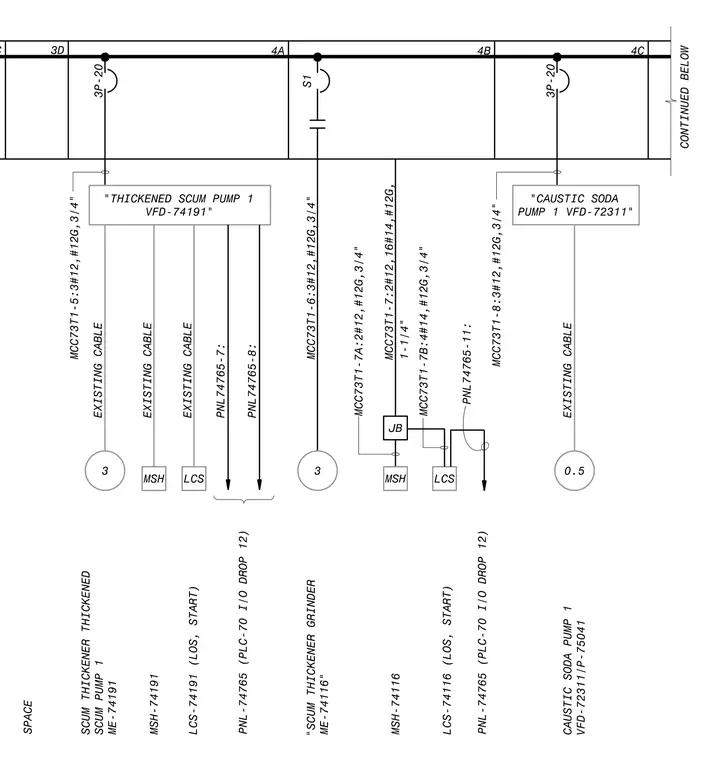

Electrical schematic illustrating control wiring and power feeds for the thickened scum pump, scum thickener grinder, and caustic soda pump. The drawing details circuit numbers, motor control center feeds, variable frequency drives, local control stations, junction boxes, and PLC I/O drop connections.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
