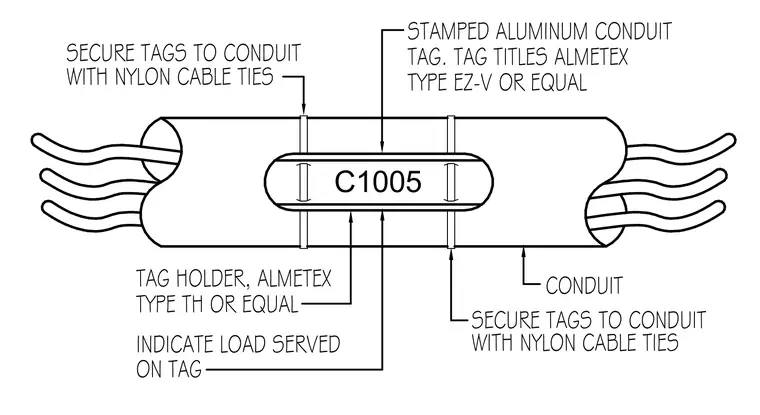

An Almetex type TH or equal tag holder mounts to the conduit to secure a stamped aluminum identification tag, specified as Almetex type EZ-V or equal. The tag must indicate the load served by the circuit. Nylon cable ties fasten the entire assembly to the conduit at both ends of the tag holder.
