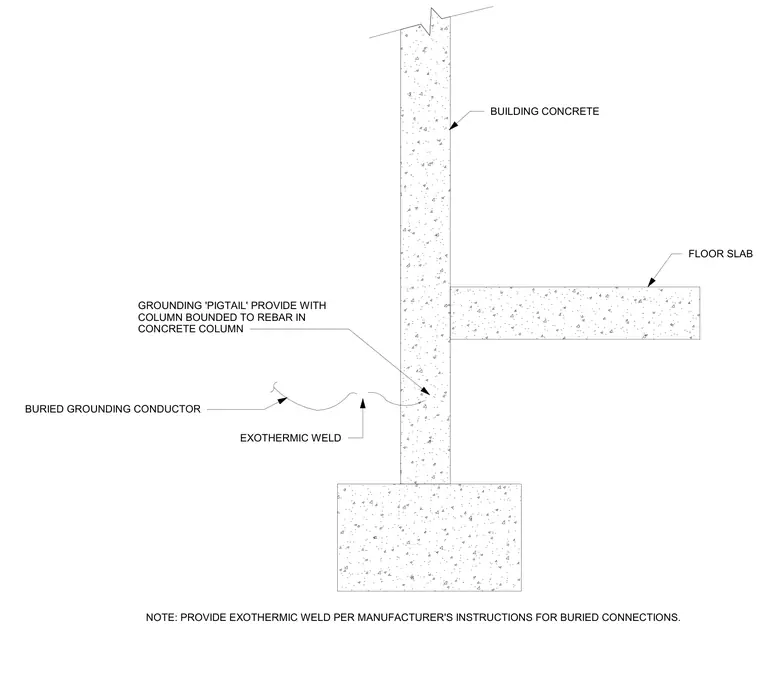

A grounding pigtail is provided within the column and bonded to the reinforcing steel inside the reinforced concrete column. A buried grounding conductor connects to the system via an exothermic weld per the manufacturer's instructions for buried connections. The installation interfaces with the building concrete column and adjacent floor slab.
BUILDING CONCRETE NOTE: PROVIDE EXOTHERMIC WELD PER MANUFACTURER'S INSTRUCTIONS FOR BURIED CONNECTIONS. GROUNDING 'PIGTAIL' PROVIDE WITH COLUMN BOUNDED TO REBAR IN CONCRETE COLUMN FLOOR SLAB EXOTHERMIC WELD BURIED GROUNDING CONDUCTOR
