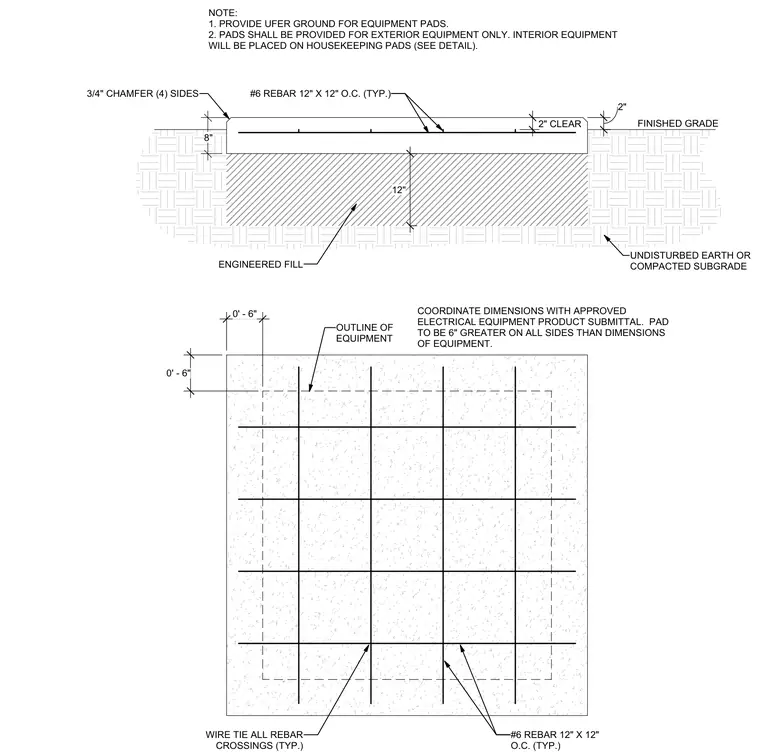

An exterior reinforced concrete equipment pad bears on twelve inches of engineered fill over undisturbed earth or compacted subgrade. The eight-inch thick concrete slab is reinforced with number six rebar spaced twelve inches on center each way with two inches of clear cover and wire ties at all rebar crossings. All four sides feature a three-quarter-inch chamfer and extend six inches beyond the footprint of the electrical equipment. A Ufer ground is provided for the pad.
0' - 6" 0' - 6" WIRE TIE ALL REBAR CROSSINGS (TYP.) #6 REBAR 12" X 12" O.C. (TYP.) OUTLINE OF EQUIPMENT COORDINATE DIMENSIONS WITH APPROVED ELECTRICAL EQUIPMENT PRODUCT SUBMITTAL. PAD TO BE 6" GREATER ON ALL SIDES THAN DIMENSIONS OF EQUIPMENT. 3/4" CHAMFER (4) SIDES 2" CLEAR #6 REBAR 12" X 12" O.C. (TYP.) FINISHED GRADE ENGINEERED FILL 12" UNDISTURBED EARTH OR COMPACTED SUBGRADE 2" NOTE: 1. PROVIDE UFER GROUND FOR EQUIPMENT PADS. 2. PADS SHALL BE PROVIDED FOR EXTERIOR EQUIPMENT ONLY. INTERIOR EQUIPMENT WILL BE PLACED ON HOUSEKEEPING PADS (SEE DETAIL). 8"
