Electrical · E-VV7Z3

Generator Ancillary Power Distribution Single Line Diagram

About this detail

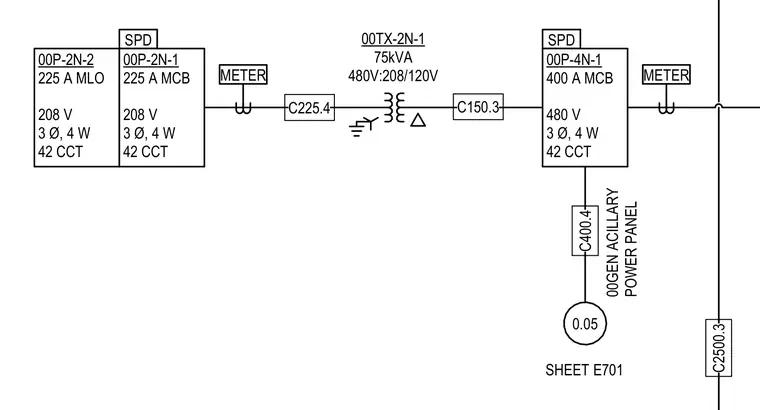

An electrical distribution schematic shows a 75kVA transformer rated for 480V to 208/120V supplying downstream power panels. Power originates through a 400A main circuit breaker panel operating at 480V, 3-phase, 4-wire with 42 circuits, protected by a surge protective device and monitored by a meter. The step-down transformer feeds two 208V secondary panels, including a 225A main circuit breaker panel and a 225A main lug only panel, each configured for 3-phase, 4-wire service with 42 circuits. Circuit designations and conduit tags such as C150.3, C225.4, C400.4, and C2500.3 route the electrical connections across the system.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
