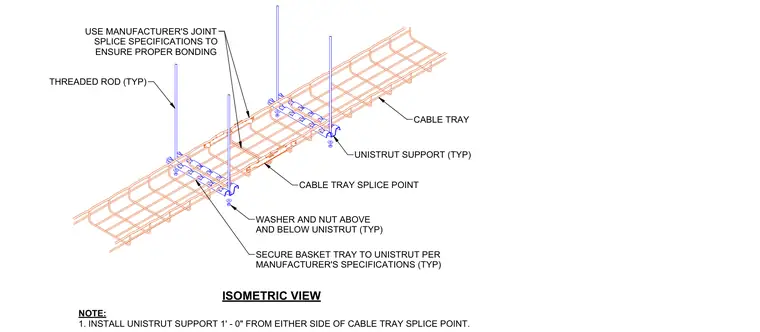

A cable tray splice assembly suspended by vertical threaded rods and supported by Unistrut channel framing located one foot from either side of the splice point. Washers and nuts secure the assembly above and below the Unistrut support. The wire basket cable tray is secured to the Unistrut per manufacturer specifications, and the cable tray splice utilizes manufacturer joint specifications to ensure proper electrical bonding.
ISOMETRIC VIEW CABLE TRAY 1. NOTE: INSTALL UNISTRUT SUPPORT 1' - 0" FROM EITHER SIDE OF CABLE TRAY SPLICE POINT. UNISTRUT SUPPORT (TYP) CABLE TRAY SPLICE POINT WASHER AND NUT ABOVE AND BELOW UNISTRUT (TYP) SECURE BASKET TRAY TO UNISTRUT PER MANUFACTURER'S SPECIFICATIONS (TYP) USE MANUFACTURER'S JOINT SPLICE SPECIFICATIONS TO ENSURE PROPER BONDING THREADED ROD (TYP)
