Electrical · E-VR3GA

Room Controller Detail

Materials

Elements

About this detail

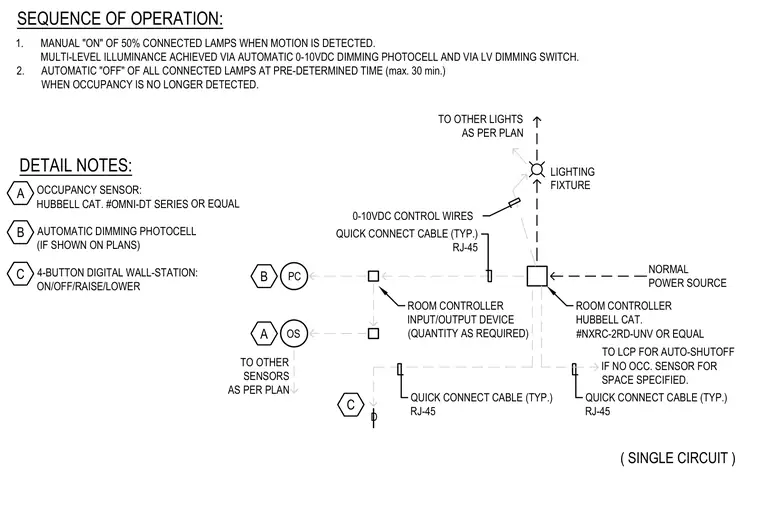

This electrical detail diagrams the single circuit sequence of operation and wiring layout for a room lighting control system. A Hubbell room controller connects to a normal power source and links via RJ-45 quick-connect cables to input/output devices, lighting fixtures, and other sensors per plan. The sequence provides manual 'on' for fifty percent of connected lamps when motion is detected, achieving multi-level illuminance through an automatic zero to ten volt direct current dimming photocell and low-voltage dimming switch. An occupancy sensor triggers automatic shut-off of all connected lamps after a predetermined time of no longer than thirty minutes when occupancy is no longer detected. Detail notes define specific hardware including a Hubbell omni-dual technology series occupancy sensor, an automatic dimming photocell, and a four-button digital wall station providing on, off, raise, and lower functions.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
