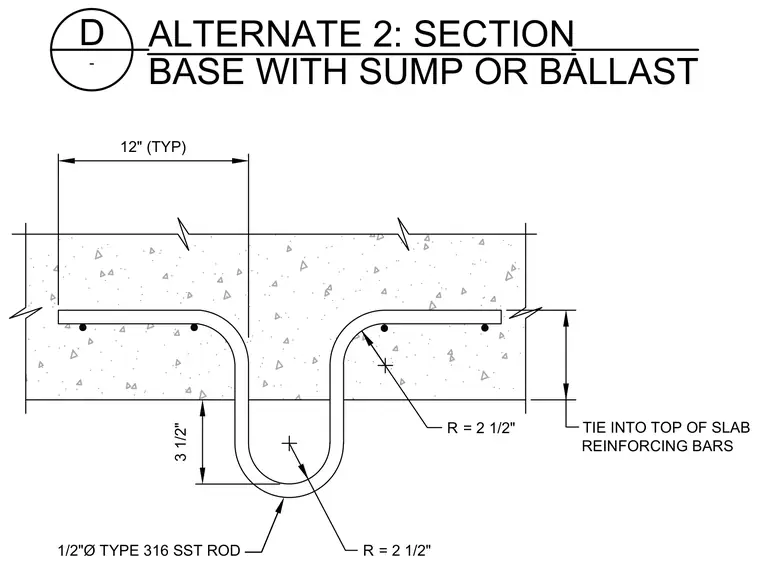

A 1/2-inch diameter Type 316 stainless steel rod is formed into a sump or ballast pocket with a 3 1/2-inch depth and 2 1/2-inch bend radius, embedded within a concrete slab. The stainless steel rod ties directly into the top layer of slab reinforcing bars. The formed pocket maintains a typical 12-inch spacing dimension.
D ALTERNATE 2: SECTION - 12" (TYP) BASE WITH SUMP OR BALLAST 3 1/2" R = 2 1/2" R = 2 1/2" TIE INTO TOP OF SLAB REINFORCING BARS 1/2"Ø TYPE 316 SST ROD
