Electrical · E-VKPJJ

Floor Box Detail

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Partitions Ceilings Floors / Slabs Waterproofing / Flashing Connections / Plates Roof / Floor Openings

About this detail

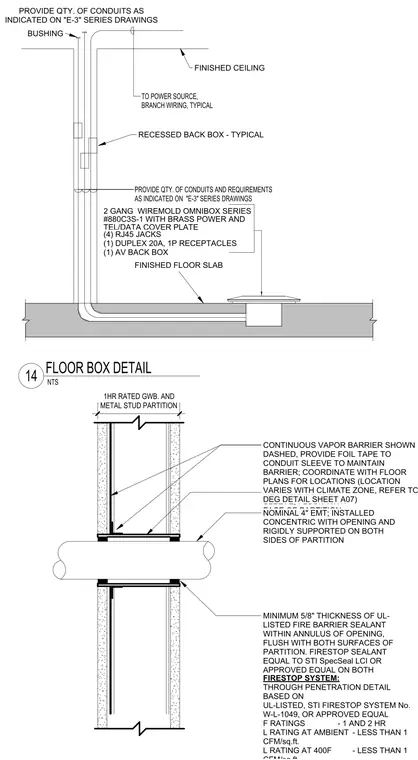

A two-gang Wiremold Omnibox series 880C3S-1 floor box is installed within a finished concrete floor slab, housing four RJ45 jacks, one duplex twenty-amp single-pole receptacle, and an audio-visual back box beneath a brass power and tel/data cover plate. Conduits route from the box through recessed back boxes up toward the finished ceiling with associated bushings. A nominal four-inch electrical metallic tubing sleeve penetrates a one-hour rated gypsum wall board and metal stud partition concentrically, rigidly supported on both sides. The annular space contains a minimum five-eighths inch thickness of UL-listed fire barrier sealant equal to STI SpecSeal LCI flush with both partition surfaces, conforming to UL-listed firestop system W-L-1049 for one and two-hour fire ratings. A continuous vapor barrier is maintained with foil tape applied to the conduit sleeve.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
