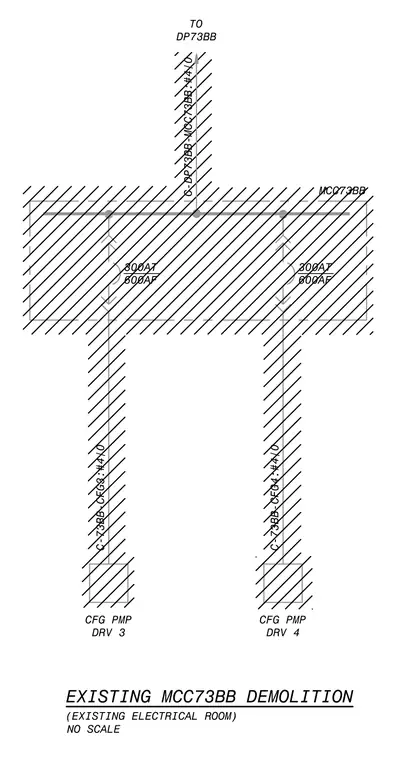

An existing motor control center labeled MCC73BB receives power from distribution panel DP73BB via conduit circuit C-DP73BB-MCC73BB: #4/0. Two centrifugal pump drives, CFG PMP DRV 3 and CFG PMP DRV 4, connect to the motor control center through individual circuits rated at 300 amp trip and 600 amp frame. The entire assembly is slated for demolition within the existing electrical room.
TO DP73BB / / 0) O j fA / / CFG PMP DRV 3 CFG PMP DRV 4 EXISTING MCC73BB DEMOLITION (EXISTING ELECTRICAL ROOM) NO SCALE
