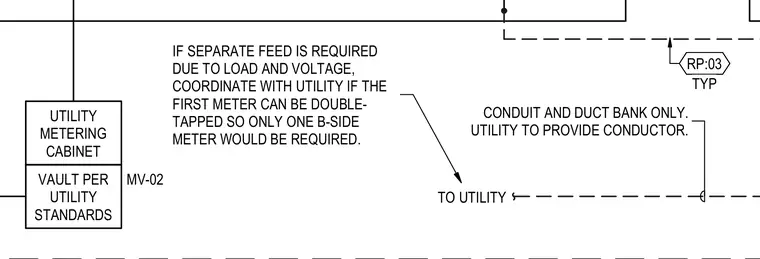

The utility metering cabinet connects to a vault built per utility standards and links to the utility conduit and duct bank, where conductors are provided by the utility. If a separate feed is required due to load and voltage, coordination with the utility is necessary to determine if the first meter can be double-tapped so only one B-side meter is required.
UTILITY METERING CABINET TYP RP:03 VAULT PER UTILITY STANDARDS TO UTILITY CONDUIT AND DUCT BANK ONLY. UTILITY TO PROVIDE CONDUCTOR. MV-02 IF SEPARATE FEED IS REQUIRED DUE TO LOAD AND VOLTAGE, COORDINATE WITH UTILITY IF THE FIRST METER CAN BE DOUBLE- TAPPED SO ONLY ONE B-SIDE METER WOULD BE REQUIRED.
