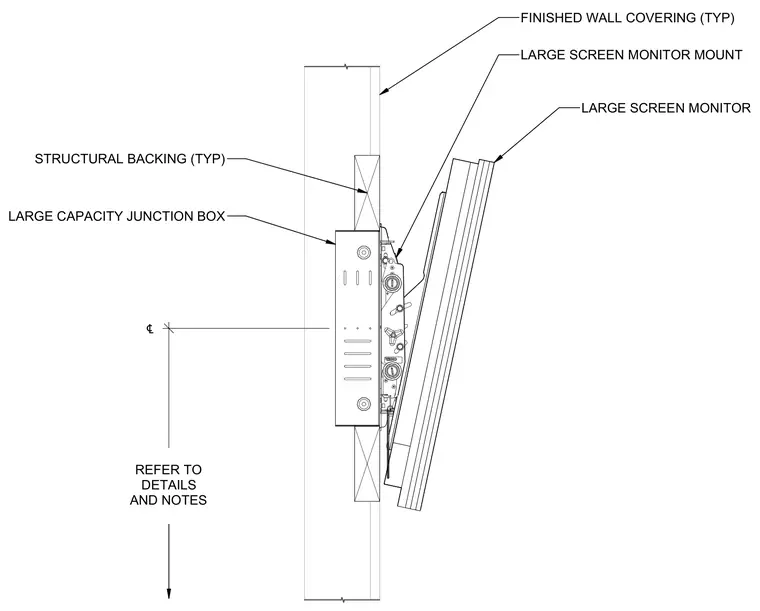

A large screen monitor mounts to a structural backing behind the finished wall covering using a dedicated mounting bracket. A large capacity junction box is integrated into the wall cavity behind the display to conceal power and data connections. Additional electrical infrastructure requirements are coordinated per architectural details and notes.
LARGE SCREEN MONITOR LARGE SCREEN MONITOR MOUNT STRUCTURAL BACKING (TYP) LARGE CAPACITY JUNCTION BOX REFER TO DETAILS AND NOTES ℄ FINISHED WALL COVERING (TYP)
