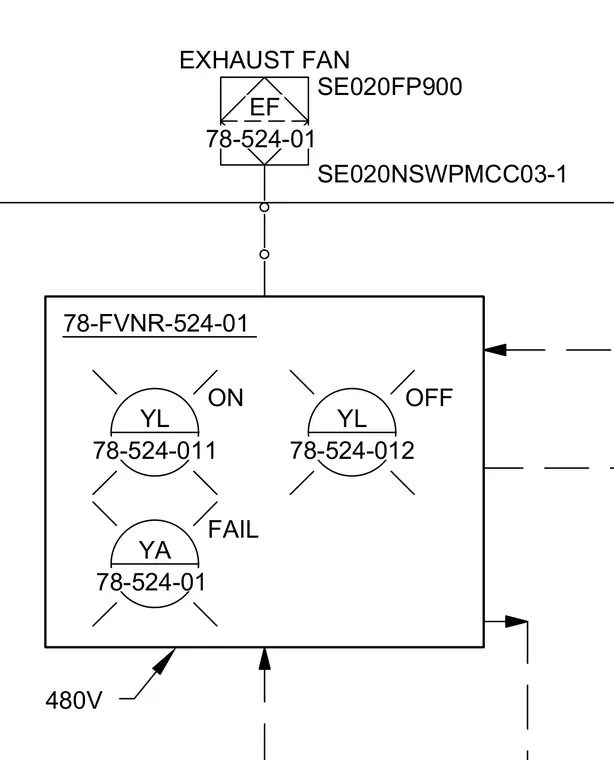

An exhaust fan motor is powered by a 480V circuit connected through a starter unit designated as 78-FVNR-524-01. The control circuit incorporates yellow indicator lights for ON and OFF statuses, along with an alarm indicator for failure conditions. Power feed and control routing are tagged with specific equipment and circuit identifiers such as SE020FP900 and SE020NSWPMCC03-1.
)915 480V EF EXHAUST FAN SE020NSWPMCC03-1 SE020FP900 YL 78-524-012 OFF YA FAIL YL 78-524-011 ON
