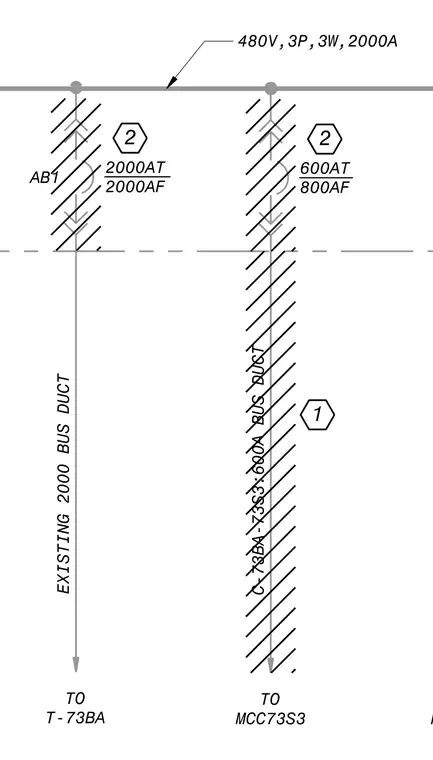

An existing 480V, 3-phase, 3-wire, 2000A bus duct distributes power to downstream equipment including a 2000A trip / 2000A frame breaker feeding a 2000 amp bus duct to T-73BA and a 600A trip / 800A frame breaker feeding MCC73S3.
TO T-73BA / © 200OAT AB'1 2000AF S 480V, 3P, 3W, 2000A / © 600AT 800AF z z 1 TO MCC73S3 MCC73T3 EXISTING 2000 BUS DUCT
