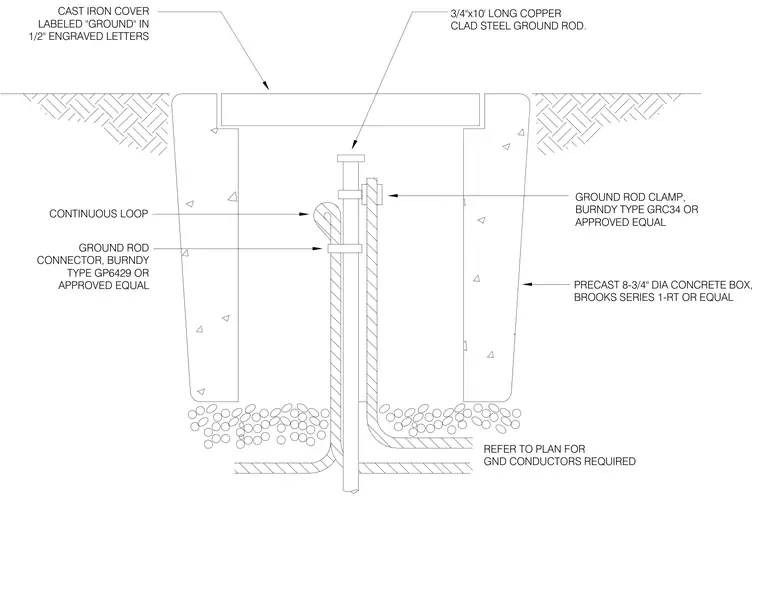

A three-quarter inch by ten-foot long copper-clad steel ground rod is driven into the earth and centered within a precast eight-and-three-quarter inch diameter concrete box. A Burndy type GRC34 ground rod clamp connects the grounding conductor to the rod near the top. A Burndy type GP6429 connector secures a continuous loop of ground conductors. The concrete box is sealed at grade with a cast iron cover labeled "GROUND" in half-inch engraved letters.
APPROVED EQUAL TYPE GP6429 OR CONNECTOR, BURNDY GROUND ROD CONTINUOUS LOOP GND CONDUCTORS REQUIRED REFER TO PLAN FOR BROOKS SERIES 1-RT OR EQUAL PRECAST 8-3/4" DIA CONCRETE BOX, APPROVED EQUAL BURNDY TYPE GRC34 OR GROUND ROD CLAMP, LABELED "GROUND" IN CAST IRON COVER CLAD STEEL GROUND ROD. 3/4"x10' LONG COPPER 1/2" ENGRAVED LETTERS
