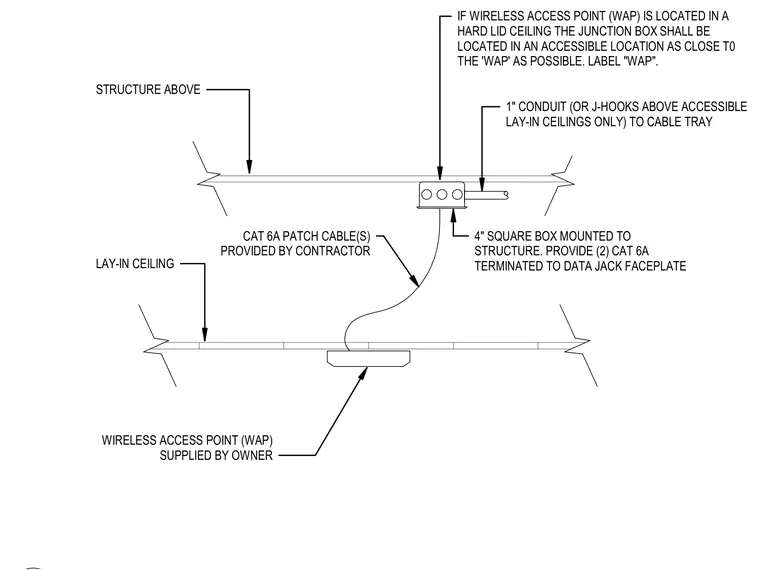

A four-inch square junction box is mounted directly to the structure above the lay-in ceiling and contains two Category 6A cables terminated to a data jack faceplate. A one-inch conduit or J-hooks route cabling to the cable tray above accessible lay-in ceilings. Category 6A patch cables provided by the contractor connect the junction box to the owner-supplied wireless access point. When the wireless access point is installed in a hard lid ceiling, the junction box must be relocated to an accessible location as close to the access point as possible and labeled WAP.
STRUCTURE ABOVE LAY-IN CEILING CAT 6A PATCH CABLE(S) PROVIDED BY CONTRACTOR 4" SQUARE BOX MOUNTED TO STRUCTURE. PROVIDE (2) CAT 6A TERMINATED TO DATA JACK FACEPLATE WIRELESS ACCESS POINT (WAP) SUPPLIED BY OWNER 1" CONDUIT (OR J-HOOKS ABOVE ACCESSIBLE LAY-IN CEILINGS ONLY) TO CABLE TRAY IF WIRELESS ACCESS POINT (WAP) IS LOCATED IN A HARD LID CEILING THE JUNCTION BOX SHALL BE LOCATED IN AN ACCESSIBLE LOCATION AS CLOSE T0 THE 'WAP' AS POSSIBLE. LABEL "WAP".
