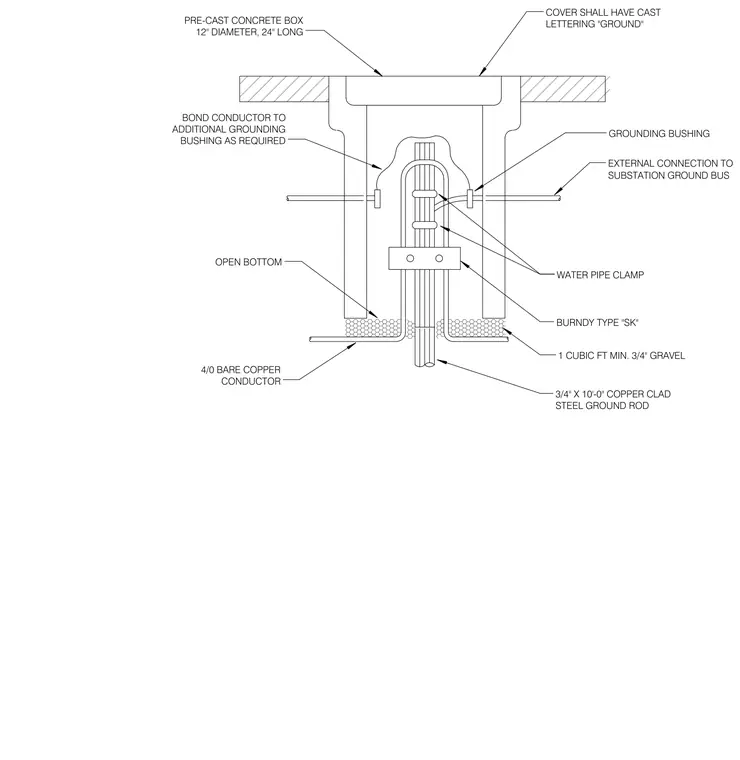

A precast concrete box measuring 12 inches in diameter and 24 inches long is installed over an open bottom bedded in a minimum of 1 cubic foot of 3/4-inch gravel. A 3/4-inch by 10-foot copper-clad steel ground rod is driven vertically into the earth through the center of the well. A 4/0 bare copper conductor routes through the gravel bed and connects to the ground rod using a Burndy type SK water pipe clamp. Additional grounding bushings and an external connection to the substation ground bus tie into the conductor as required. The precast concrete box is finished with a cover featuring cast lettering reading GROUND.
4/0 BARE COPPER CONDUCTOR OPEN BOTTOM 1 CUBIC FT MIN. 3/4" GRAVEL 3/4" X 10'-0" COPPER CLAD STEEL GROUND ROD BURNDY TYPE "SK" WATER PIPE CLAMP BOND CONDUCTOR TO ADDITIONAL GROUNDING BUSHING AS REQUIRED PRE-CAST CONCRETE BOX 12" DIAMETER, 24" LONG EXTERNAL CONNECTION TO SUBSTATION GROUND BUS GROUNDING BUSHING COVER SHALL HAVE CAST LETTERING "GROUND"
