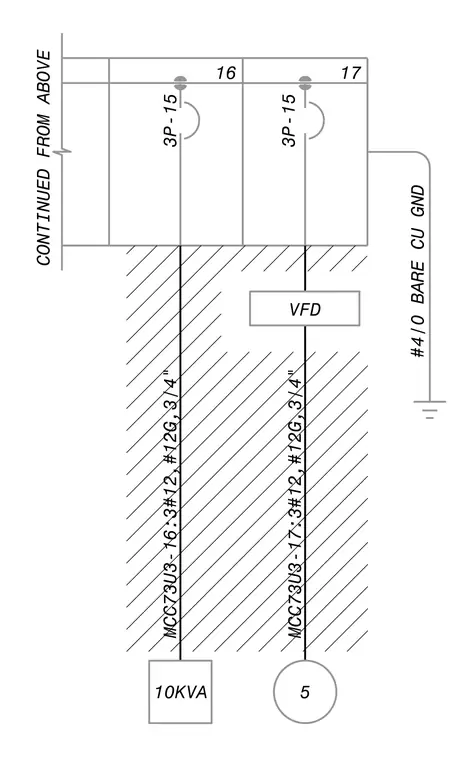

An electrical riser diagram showing branch circuit connections continued from above, feeding circuit positions sixteen and seventeen. Circuit sixteen supplies a 10KVA transformer via conduit containing three number twelve conductors and one number twelve ground in a three-quarter inch conduit. Circuit seventeen feeds a variable frequency drive through similar conductor sizing before terminating at equipment five. A number four-zero bare copper ground conductor connects to the system ground.
