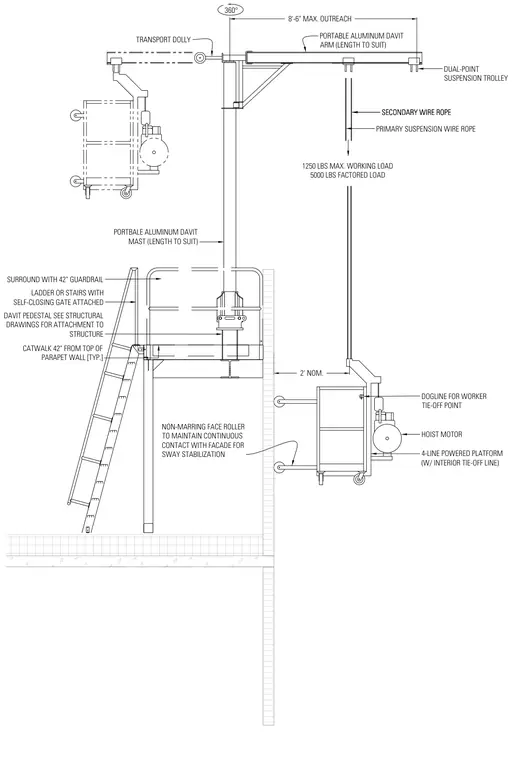

A portable aluminum davit arm with a maximum outreach of eight feet six inches and a three hundred sixty degree rotation capability is mounted to a portable aluminum mast. The system supports a dual-point suspension trolley with primary and secondary wire ropes rated for twelve hundred fifty pounds maximum working load and five thousand pounds factored load. The davit pedestal is secured to the structure at a catwalk positioned forty-two inches from the top of the parapet wall. The catwalk features a surround with a forty-two inch guardrail and a ladder or stairs equipped with a self-closing gate. A four-line powered platform includes a hoist motor, an interior tie-off line, a dogline for worker tie-off, and non-marring face rollers to maintain continuous contact with the facade for sway stabilization.
SECONDARY WIRE ROPE DAVIT PEDESTAL SEE STRUCTURAL DRAWINGS FOR ATTACHMENT TO STRUCTURE CATWALK 42" FROM TOP OF PARAPET WALL [TYP.] LADDER OR STAIRS WITH SELF-CLOSING GATE ATTACHED SURROUND WITH 42" GUARDRAIL 4-LINE POWERED PLATFORM (W/ INTERIOR TIE-OFF LINE) NON-MARRING FACE ROLLER TO MAINTAIN CONTINUOUS CONTACT WITH FACADE FOR SWAY STABILIZATION HOIST MOTOR TRANSPORT DOLLY 360° DOGLINE FOR WORKER TIE-OFF POINT PORTBALE ALUMINUM DAVIT MAST (LENGTH TO SUIT) 1250 LBS MAX. WORKING LOAD 5000 LBS FACTORED LOAD 2' NOM. PRIMARY SUSPENSION WIRE ROPE SECONDARY WIRE ROPE DUAL-POINT SUSPENSION TROLLEY PORTABLE ALUMINUM DAVIT ARM (LENGTH TO SUIT) 8'-6" MAX. OUTREACH
