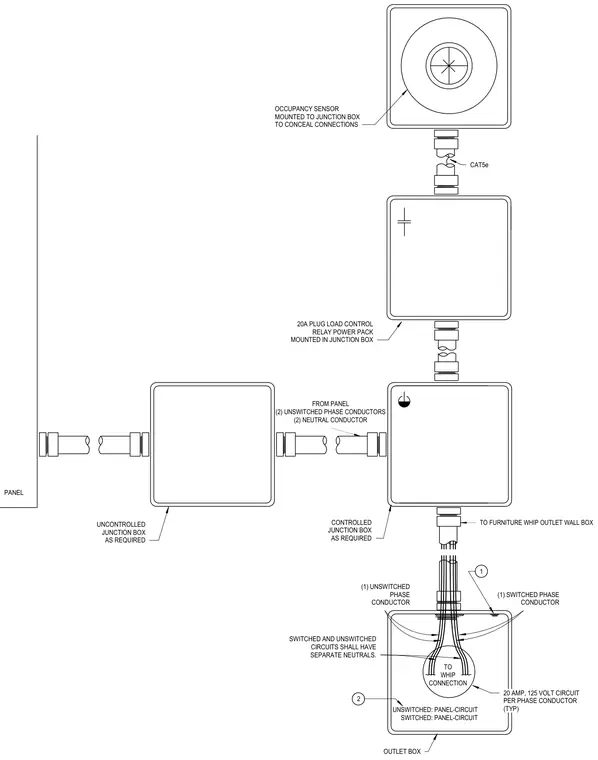

Wiring connections for controlled systems furniture utilize two circuits with separate neutrals. Power is routed from the panel through an uncontrolled junction box and a controlled junction box containing a twenty-amp plug load control relay power pack. An occupancy sensor is mounted directly to the junction box to conceal connections and interfaces via a CAT5e cable. The controlled junction box extends a furniture whip containing one switched phase conductor, one unswitched phase conductor, and neutral conductors down to the outlet box. The outlet box supplies a twenty-amp, 125-volt circuit per phase conductor with distinct panel-circuit assignments for switched and unswitched connections.
OUTLET BOX 1 SWITCHED AND UNSWITCHED CIRCUITS SHALL HAVE SEPARATE NEUTRALS. (1) UNSWITCHED PHASE CONDUCTOR 20 AMP, 125 VOLT CIRCUIT PER PHASE CONDUCTOR (TYP) (1) SWITCHED PHASE CONDUCTOR TO WHIP CONNECTION TO FURNITURE WHIP OUTLET WALL BOX UNSWITCHED: PANEL-CIRCUIT SWITCHED: PANEL-CIRCUIT 2 UNCONTROLLED JUNCTION BOX AS REQUIRED PANEL FROM PANEL (2) UNSWITCHED PHASE CONDUCTORS (2) NEUTRAL CONDUCTOR CONTROLLED JUNCTION BOX AS REQUIRED 20A PLUG LOAD CONTROL RELAY POWER PACK MOUNTED IN JUNCTION BOX OCCUPANCY SENSOR MOUNTED TO JUNCTION BOX TO CONCEAL CONNECTIONS CAT5e
