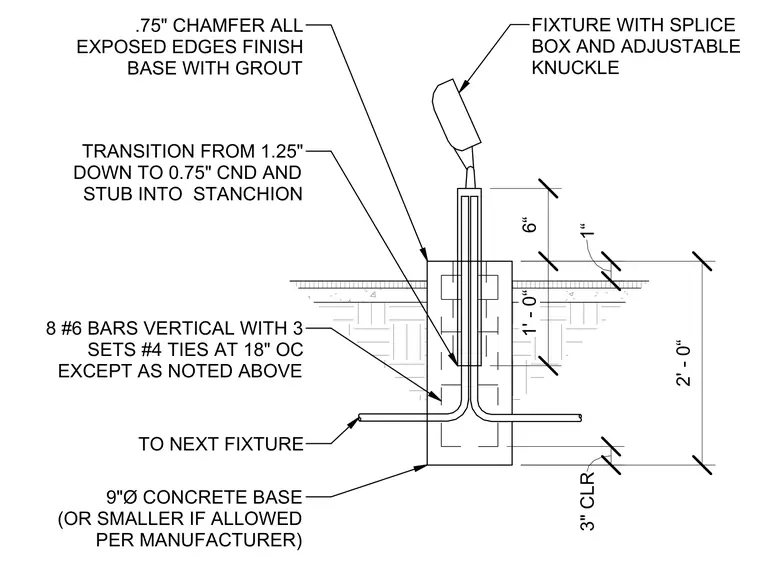

A 9-inch diameter concrete base supports the lighting fixture with an adjustable knuckle and splice box. The foundation is reinforced with eight number six vertical bars and three sets of number four ties at 18 inches on center. A conduit transitions from 1.25 inches down to 0.75 inches and stubs into the stanchion, connecting onwards to the next fixture. Exposed edges feature a 0.75-inch chamfer and the base finish includes grout.
.75" CHAMFER ALL EXPOSED EDGES FINISH BASE WITH GROUT TRANSITION FROM 1.25" DOWN TO 0.75" CND AND STUB INTO STANCHION 8 #6 BARS VERTICAL WITH 3 SETS #4 TIES AT 18" OC EXCEPT AS NOTED ABOVE 9"Ø CONCRETE BASE (OR SMALLER IF ALLOWED PER MANUFACTURER) FIXTURE WITH SPLICE BOX AND ADJUSTABLE KNUCKLE TO NEXT FIXTURE 2' - 0“ 3" CLR 6“ 1' - 0“ 1“
