E-V97JK — Main Distribution Panel One Line Diagram

Electrical · E-V97JK

Main Distribution Panel One Line Diagram

About this detail

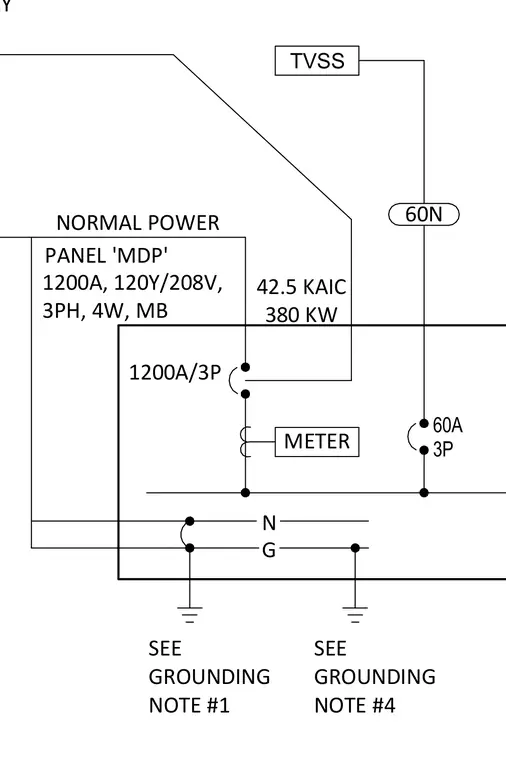

A 1200A, 120Y/208V, 3-phase, 4-wire main distribution panel with a main breaker feeds normal power through a meter and transient voltage surge suppressor. The system includes 42.5 KAIC rating, 380 kW load, a 60A 3-pole breaker, and neutral and ground connections referencing specific project grounding notes.

60A 3P 42.5 KAIC 380 KW 1200A/3P SEE GROUNDING NOTE #1 60N NORMAL POWER SEE GROUNDING NOTE #4 DEPARTMENT KEY N G METER 1200A, 120Y/208V, 3PH, 4W, MB PANEL 'MDP' TVSS

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership
