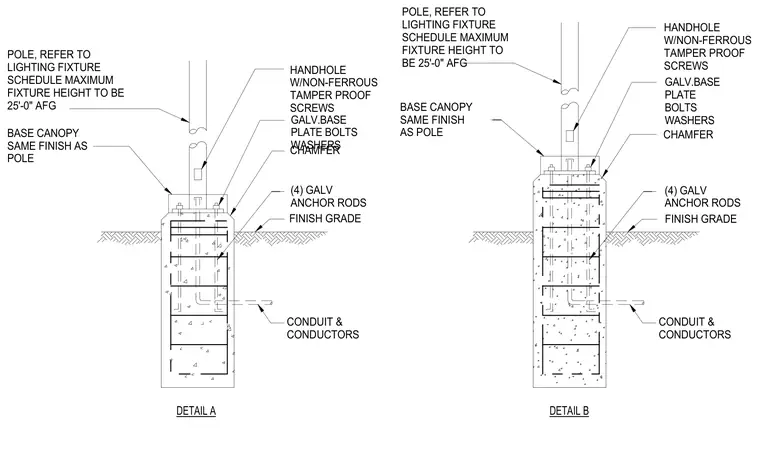

A lighting pole mounts to a galvanized base plate secured by four galvanized anchor rods embedded in a reinforced concrete foundation. A base canopy matching the pole finish covers the plate assembly above the finish grade. A handhole with non-ferrous tamper-proof screws provides access near the base. Electrical conduit and conductors enter through the side of the concrete footing.
DETAIL A DETAIL B FINISH GRADE CHAMFER POLE, REFER TO LIGHTING FIXTURE SCHEDULE MAXIMUM FIXTURE HEIGHT TO BE 25'-0" AFG BASE CANOPY SAME FINISH AS POLE HANDHOLE W/NON-FERROUS TAMPER PROOF SCREWS GALV.BASE PLATE BOLTS WASHERS CHAMFER (4) GALV ANCHOR RODS POLE, REFER TO LIGHTING FIXTURE SCHEDULE MAXIMUM FIXTURE HEIGHT TO BE 25'-0" AFG BASE CANOPY SAME FINISH AS POLE HANDHOLE W/NON-FERROUS TAMPER PROOF SCREWS GALV.BASE PLATE BOLTS WASHERS CONDUIT & CONDUCTORS (4) GALV ANCHOR RODS FINISH GRADE CONDUIT & CONDUCTORS
