MHF Control Console Wiring and Connection Diagram

Elements

Millwork / Casework Connections / Plates

About this detail

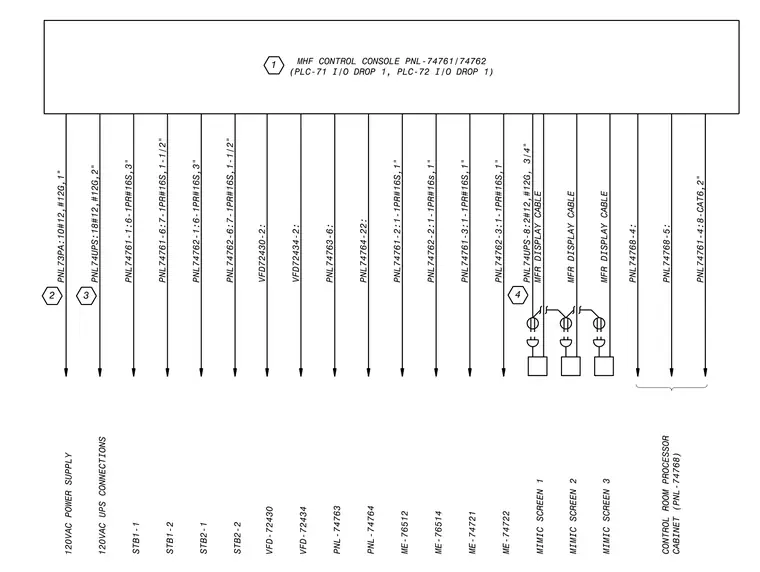

This electrical connection diagram outlines the wiring layout for the MHF Control Console panels PNL-74761 and PNL-74762 associated with PLC-71 and PLC-72 I/O drops. It specifies multiple twisted-pair instrument cables, CAT6 data cables, and manufacturer display cables connecting to mimic screens 1 through 3. Power supply feeds include a 120VAC UPS connection routed through panel PNL-74UPS with specified conductor sizing and a 120VAC power supply circuit from PNL-73PA. Interconnections route to variable frequency drives VFD-72430 and VFD-72434, terminal blocks STB1 and STB2, and the control room processor cabinet PNL-74768.
