Electrical · E-V36Y6

*Bearing The Ul Classification Marking

Materials

Concrete Reinforced Concrete Steel Masonry / CMU Metal (misc.)

Elements

Walls Floors / Slabs Anchors / Embeds Reinforcing Roof / Floor Openings

About this detail

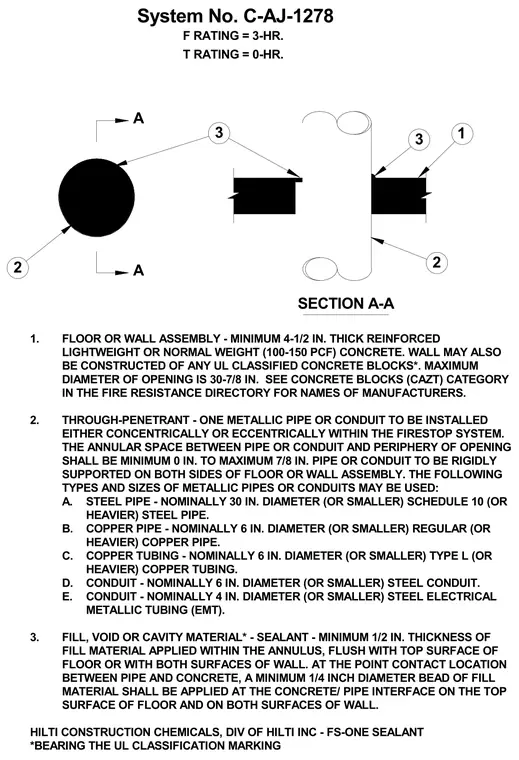

This firestop assembly accommodates a through-penetrant consisting of one metallic pipe or conduit installed concentrically or eccentrically within a minimum 4-1/2 inch thick reinforced lightweight or normal weight concrete floor or concrete block wall. The maximum diameter of the opening is 30-7/8 inches with an annular space ranging from zero to 7/8 inches. Permissible penetrants include steel pipe up to 30 inches in diameter, copper pipe or tubing up to 6 inches, steel conduit up to 6 inches, and electrical metallic tubing up to 4 inches. The annular space is sealed with a minimum 1/2 inch thickness of fill material applied flush with the top surface of the floor or both surfaces of the wall. At point-contact locations between the pipe and concrete, a minimum 1/4 inch diameter bead of fill material is applied at the interface.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
