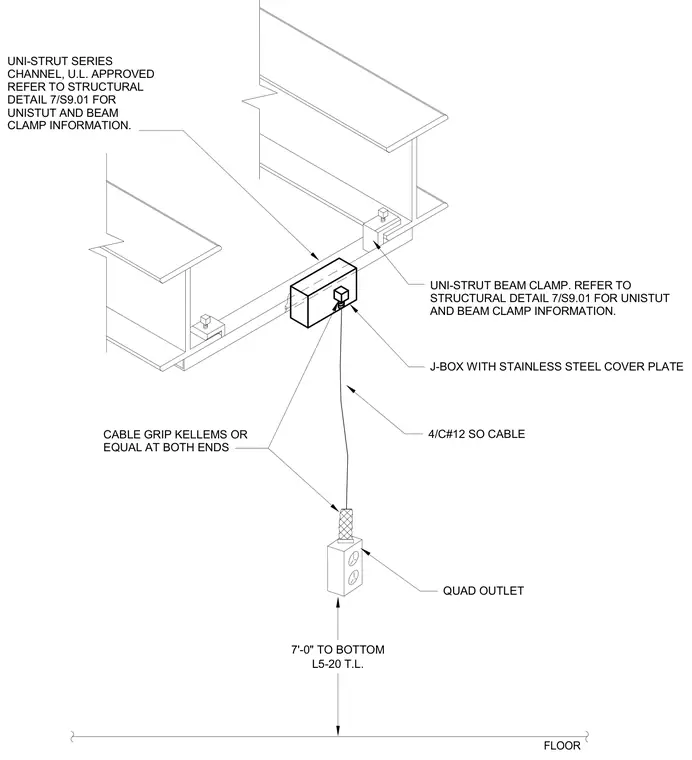

A junction box with a stainless steel cover plate is supported from an overhead steel beam using Unistrut series channel and beam clamps. A four-conductor number 12 SO cable runs from the junction box, secured with Kellems cable grips or equal at both ends, and drops to a quad outlet. The bottom of the drop is positioned seven feet above the finished floor level.
4/C#12 SO CABLE QUAD OUTLET CABLE GRIP KELLEMS OR EQUAL AT BOTH ENDS J-BOX WITH STAINLESS STEEL COVER PLATE UNI-STRUT BEAM CLAMP. REFER TO STRUCTURAL DETAIL 7/S9.01 FOR UNISTUT AND BEAM CLAMP INFORMATION. UNI-STRUT SERIES CHANNEL, U.L. APPROVED REFER TO STRUCTURAL DETAIL 7/S9.01 FOR UNISTUT AND BEAM CLAMP INFORMATION. 7'-0" TO BOTTOM L5-20 T.L. FLOOR
