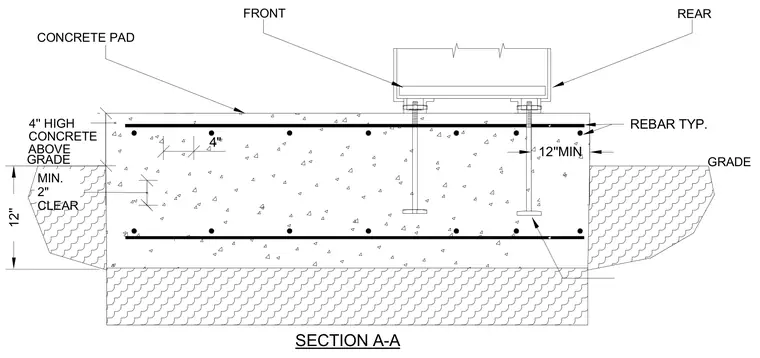

A concrete pad extends twelve inches deep with four inches positioned above grade. The assembly includes reinforcing rebar spaced twelve inches minimum with a two-inch concrete clearance. Equipment mounts to the pad via embedded anchor bolts positioned near the front and rear.
4" SECTION A-A GRADE CONCRETE PAD MIN. 2" CLEAR 4'' HIGH CONCRETE ABOVE GRADE 12'' 12''MIN REBAR TYP. FRONT REAR
