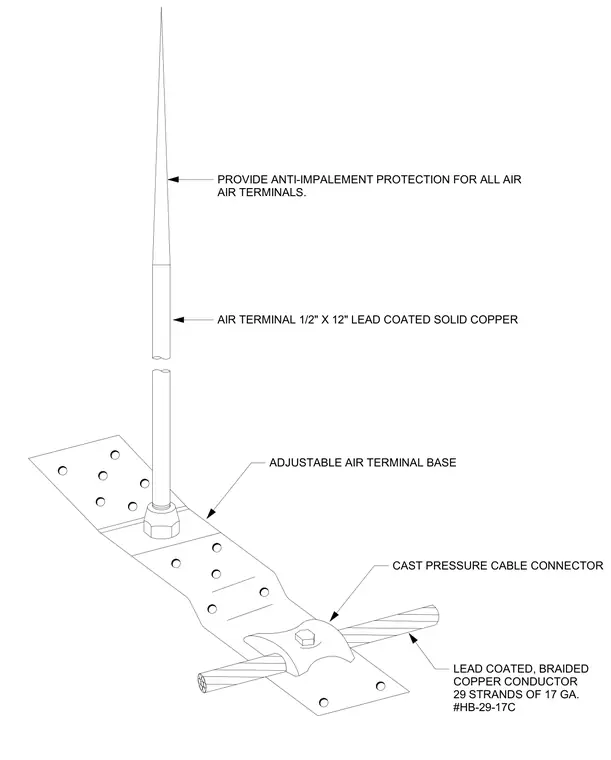

An adjustable air terminal base secures a one-half-inch by twelve-inch lead-coated solid copper air terminal. Anti-impalement protection is provided for the air terminal. A cast pressure cable connector fastens a lead-coated braided copper conductor consisting of twenty-nine strands of seventeen gauge wire, designated as model HB-29-17C.
LEAD COATED, BRAIDED COPPER CONDUCTOR 29 STRANDS OF 17 GA. #HB-29-17C CAST PRESSURE CABLE CONNECTOR ADJUSTABLE AIR TERMINAL BASE AIR TERMINAL 1/2" X 12" LEAD COATED SOLID COPPER PROVIDE ANTI-IMPALEMENT PROTECTION FOR ALL AIR AIR TERMINALS.
