A TVI-LMF-2A EcoSystem to 0-10V interface measuring 4.2 inches wide by 3.0 inches high by 1.0 inch deep connects to an input feed, providing one unit per 0-10V fixture. Output wiring extends from the interface to the 0-10V LED driver provided by others. Additional digital loop connections link the interface module to EcoSystem ballasts and modules with a maximum of sixty-four devices per loop.

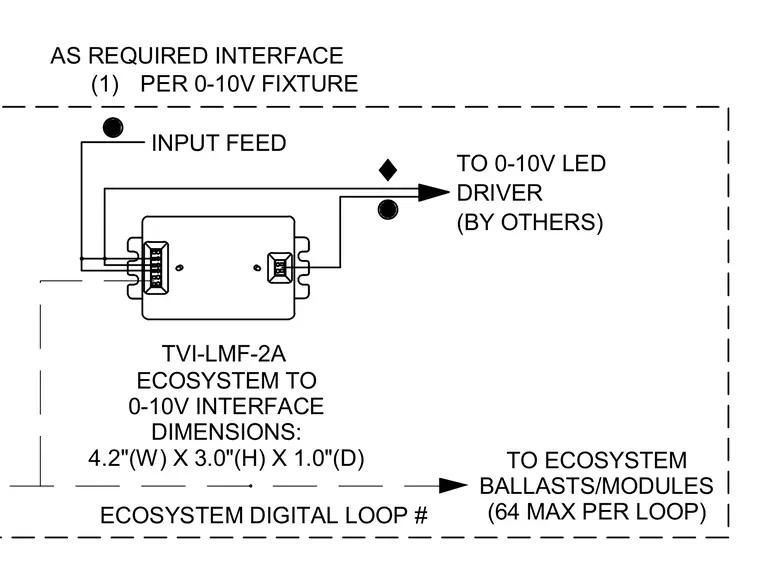

TO 0-10V LED DRIVER (BY OTHERS) TVI-LMF-2A ECOSYSTEM TO 0-10V INTERFACE DIMENSIONS: 4.2"(W) X 3.0"(H) X 1.0"(D) INPUT FEED TO ECOSYSTEM BALLASTS/MODULES (64 MAX PER LOOP) ECOSYSTEM DIGITAL LOOP # AS REQUIRED INTERFACE (1) PER 0-10V FIXTURE
