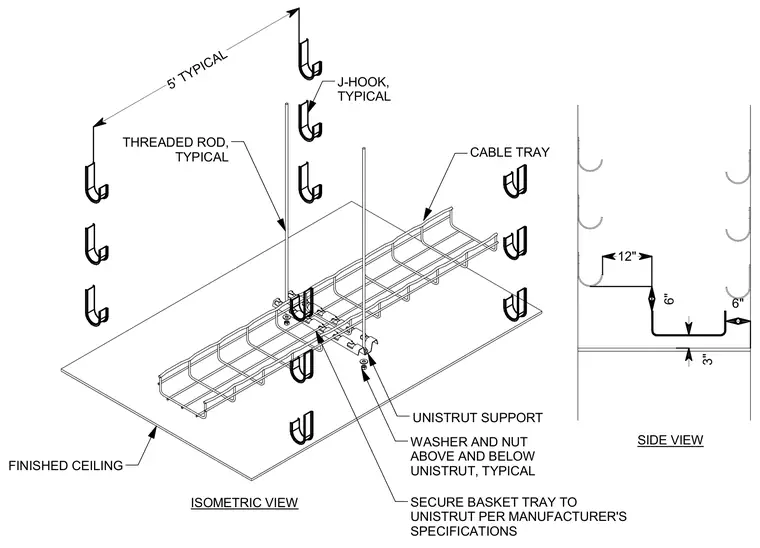

A cable tray and associated J-hooks are suspended from overhead structure using vertical threaded rods spaced at five feet typical intervals. The cable tray rests on a Unistrut support channel, secured with washers and nuts positioned above and below the Unistrut member. J-hooks are mounted along the vertical rods and drop wire runs for secondary cable routing. All attachments are secured per the manufacturer's specifications relative to the finished ceiling plane.
3" 12" 6" 5' TYPICAL 6" ISOMETRIC VIEW SIDE VIEW CABLE TRAY UNISTRUT SUPPORT THREADED ROD, TYPICAL FINISHED CEILING WASHER AND NUT ABOVE AND BELOW UNISTRUT, TYPICAL J-HOOK, TYPICAL SECURE BASKET TRAY TO UNISTRUT PER MANUFACTURER'S SPECIFICATIONS
