An industrial-duty cord reel with twenty-five feet of three-conductor number ten Type SO cord and a positive-stop locking cord ratchet is rigidly supported from the structural girder. An adjustable ball stop positions the drop, which terminates in a Hubbell Kellum grip and receptacle. The cord reel is provided by others, utilizing a Woodhead type 9242 or approved equal.

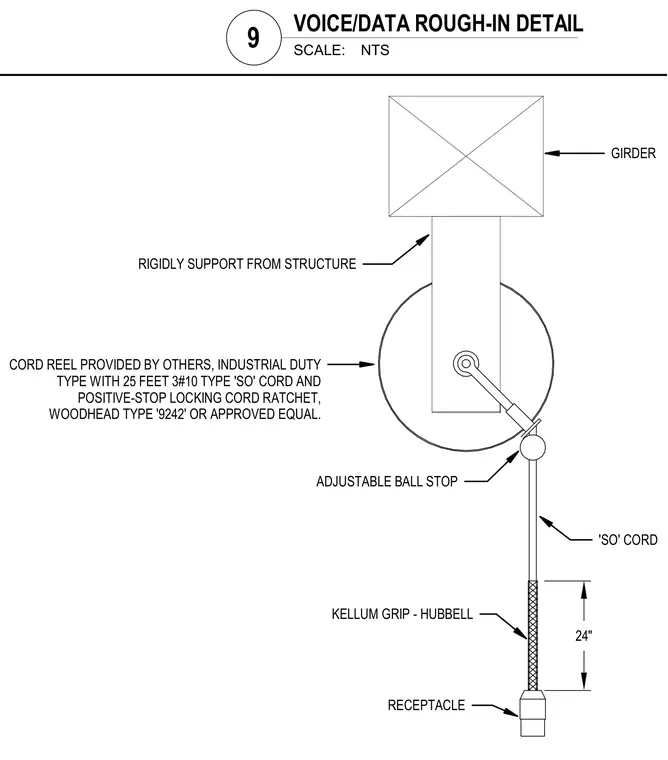

RECEPTACLE KELLUM GRIP - HUBBELL ADJUSTABLE BALL STOP CORD REEL PROVIDED BY OTHERS, INDUSTRIAL DUTY TYPE WITH 25 FEET 3#10 TYPE 'SO' CORD AND POSITIVE-STOP LOCKING CORD RATCHET, WOODHEAD TYPE '9242' OR APPROVED EQUAL. RIGIDLY SUPPORT FROM STRUCTURE GIRDER 'SO' CORD 24" SCALE: NTS VOICE/DATA ROUGH-IN DETAIL 9
