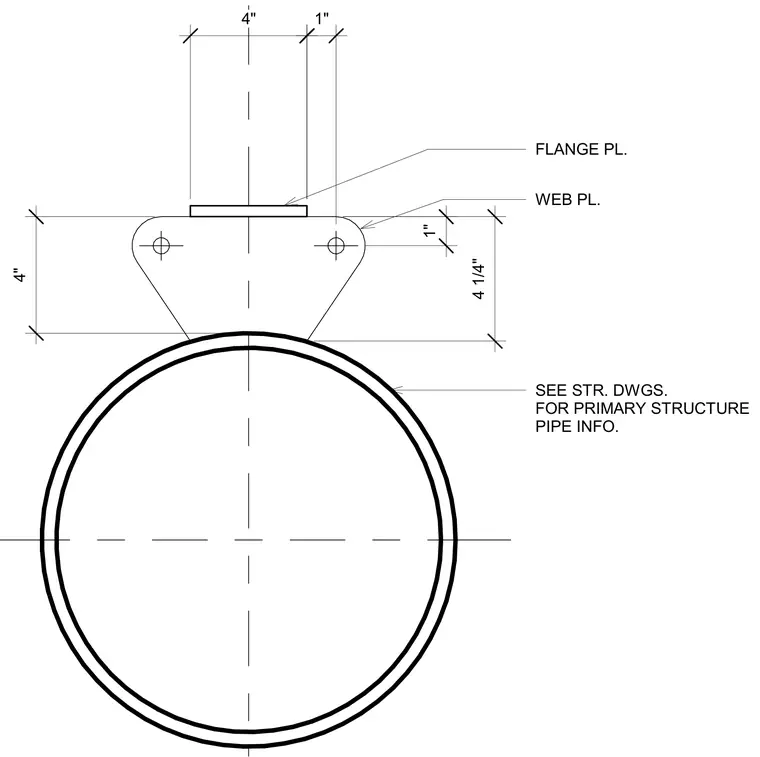

A web plate and flange plate attach to a primary structural pipe, with dimensions and hole placements indicated on the bracket. The web plate is sized four and one-quarter inches in height with one-inch edge clearances and four-inch spacing dimensions. A flat flange plate sits above the web plate. Primary structure pipe information is referenced to the structural drawings.
4" 4" 1" 4 1/4" 1" WEB PL. FLANGE PL. SEE STR. DWGS. FOR PRIMARY STRUCTURE PIPE INFO.
