Electrical · E-TJRNF

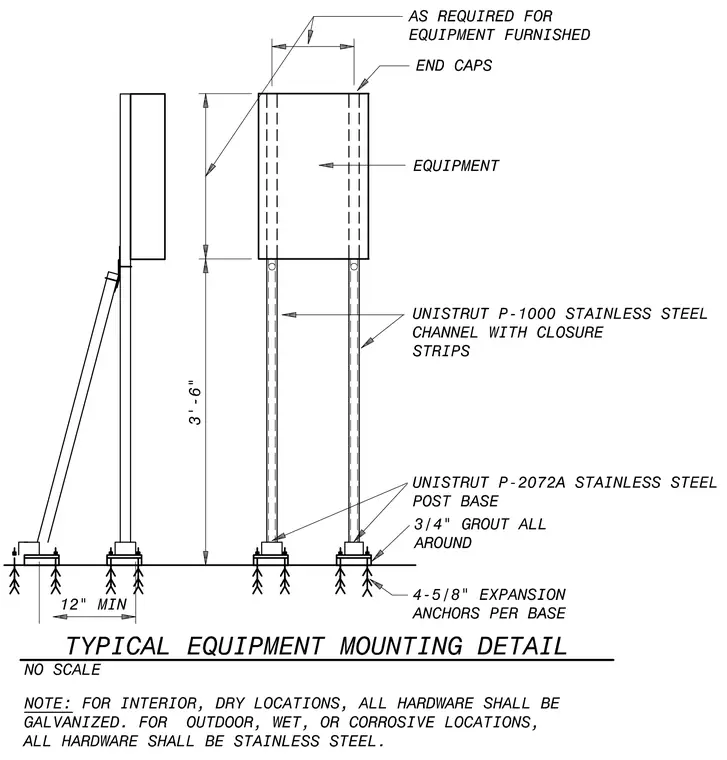

Typical Equipment Mounting Detail on Unistrut Channels

Materials

Concrete Steel Stainless Steel Masonry / CMU Metal (misc.)

Elements

About this detail

Equipment is mounted on two vertical Unistrut P-1000 stainless steel channels with closure strips and end caps, spaced as required for the equipment furnished. The channels connect to Unistrut P-2072A stainless steel post bases anchored with four 5/8-inch expansion anchors per base. A 3/4-inch grout layer is installed all around beneath the base plate. Hardware is galvanized for interior dry locations and stainless steel for outdoor, wet, or corrosive locations.
