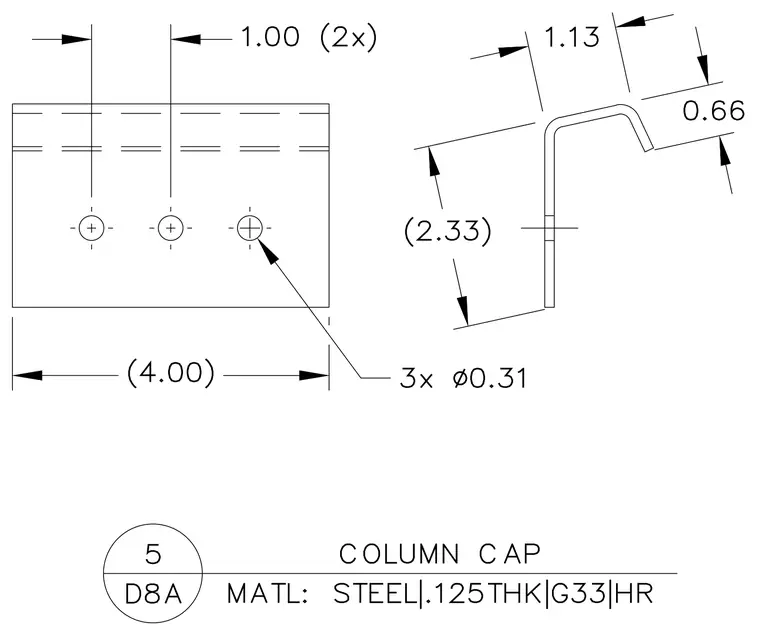

A formed steel column cap is fabricated from 0.125-inch thick hot-rolled steel. The component features an overall width of 4.00 inches with a top return flange depth of 0.66 inches and a total height of 2.33 inches to the center of the vertical mounting line. Three equally spaced holes with a diameter of 0.31 inches are punched along the vertical leg, spaced at 1.00-inch intervals.
(4.00) 0.66 (2.33) 1.13 1.00 (2x) 3x ∅0.31 COLUMN CAP 5 D8A MATL: STEEL|.125THK|G33|HR (D + +
