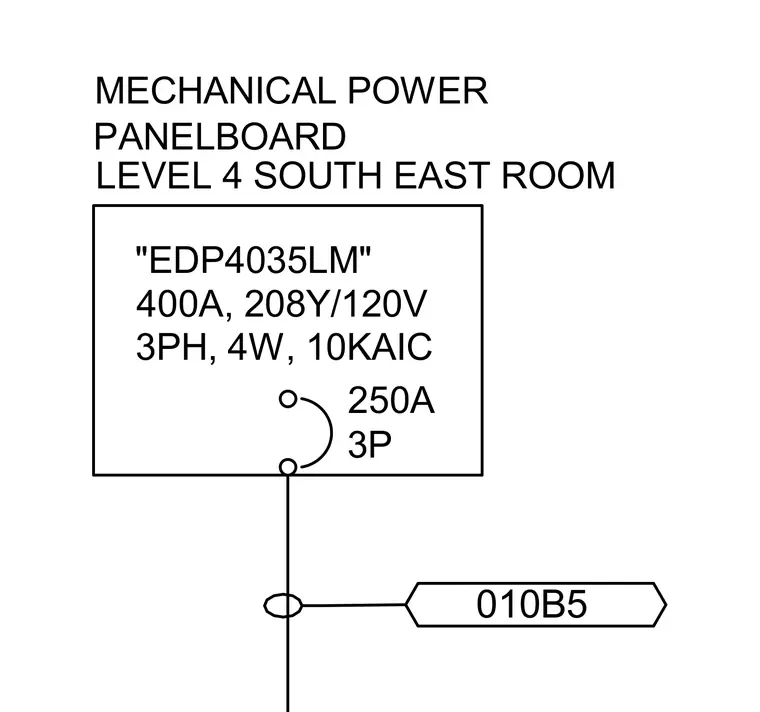

Mechanical power panelboard EDP4035LM is rated at 400 amperes, 208Y/120 volts, 3-phase, 4-wire, with a 10 kAIC fault current rating. The panel includes a 250-ampere 3-pole circuit breaker feeding circuit 010B5.
MECHANICAL POWER PANELBOARD LEVEL 4 SOUTH EAST ROOM "EDP4035LM" 400A, 208Y/120V 3PH, 4W, 10KAIC 250A 3P 010B5
