Variable Frequency Drive Network Diagram for TWAS Pump 1

About this detail

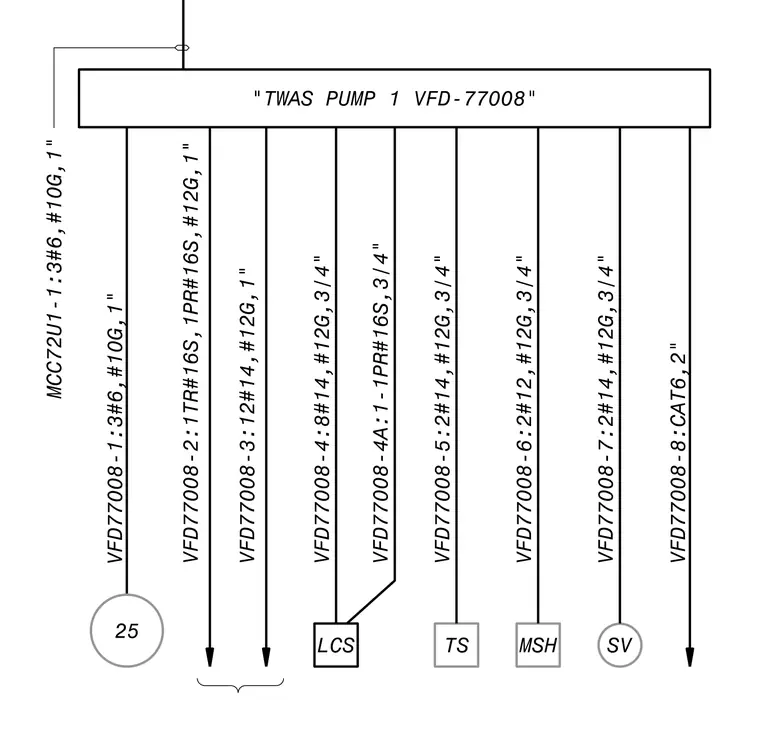

This electrical schematic details the wiring connections for variable frequency drive VFD-77008 controlling TWAS pump 1. Power is supplied from motor control center MCC72U1 via three number six conductors and one number ten ground wire in a one-inch conduit. The drive routes multiple control, instrumentation, and data circuits including shielded twisted pairs, multi-conductor control wiring, and a Cat 6 data cable to various field devices such as a local control station, temperature switch, motor status housing, and solenoid valve.
