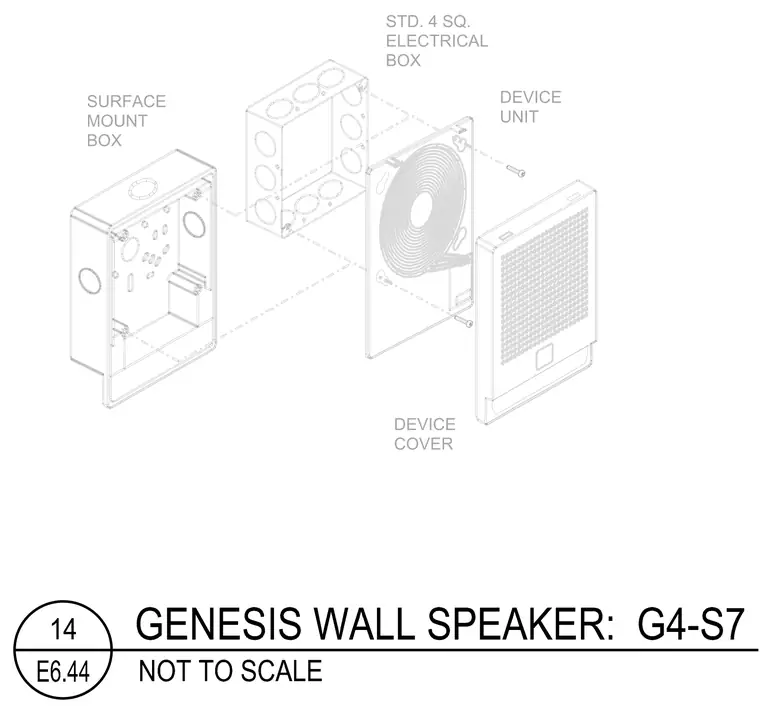

An exploded axonometric view details the installation components of a Genesis wall speaker unit. The assembly begins with a standard four-square electrical box mounted behind a surface mount box. A device unit containing the speaker coil mounts to the box with mechanical fasteners. A device cover snaps or screws over the unit to complete the installation.
ELECTRICAL BOX STD. 4 SQ. UNIT DEVICE DEVICE COVER SURFACE MOUNT BOX
