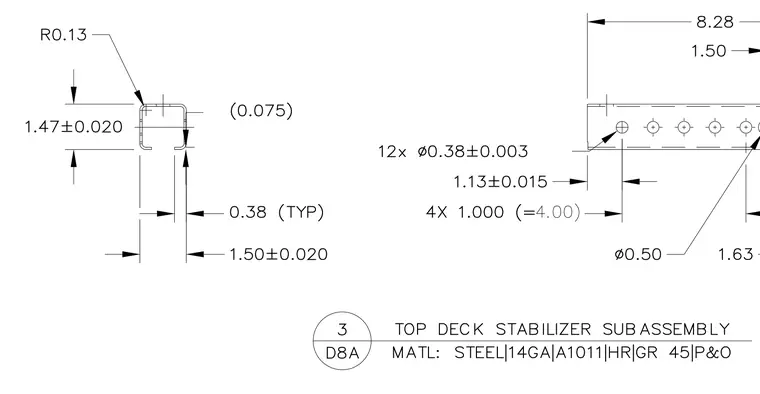

A top deck stabilizer subassembly is fabricated from fourteen-gauge A1011 hot-rolled pickled and oiled steel, grade forty-five. A formed channel profile has a height of 1.47 inches, a width of 1.50 inches, a wall thickness of 0.075 inches, typical flange openings of 0.38 inches, and corner radii of 0.13 inches. A series of twelve holes with a diameter of 0.38 inches are spaced at 1.000-inch intervals spanning a 4.00-inch dimension, alongside a 0.50-inch diameter hole and an overall length of 8.28 inches.
4X 1.000 (= 8.28 12x ∅0.38±0.003 1.50±0.020 (0.075) 1.47±0.020 0.38 (TYP) 1.13±0.015 1.50 ∅0.50 1.63 R0.13 TOP DECK STABILIZER SUBASSEMBLY 3 D8A MATL: STEEL|14GA|A1011|HR|GR 45|P&O H = 4 L 4.00)
