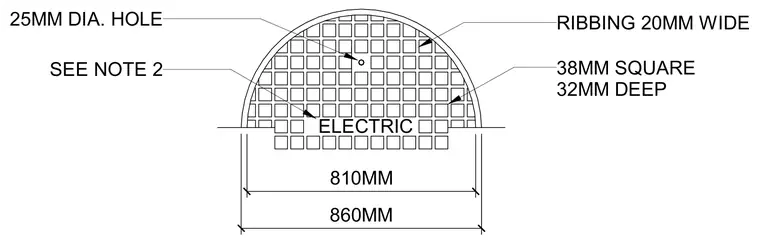

An electric utility maintenance hole cover featuring raised surface ribbing and a cast-in identifier. The cover includes a twenty-five millimeter diameter hole referenced to note two, with twenty millimeter wide ribbing forming thirty-eight millimeter square pockets that are thirty-two millimeter deep. The overall assembly measures eight hundred ten millimeters across the interior clear opening and eight hundred sixty millimeters across the outer limits.
ELECTRIC 25MM DIA. HOLE SEE NOTE 2 RIBBING 20MM WIDE 38MM SQUARE 32MM DEEP 810MM 860MM
