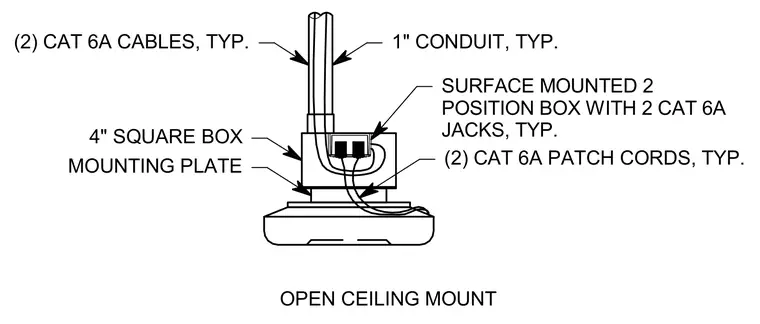

A surface mounted two position box with two Cat 6A jacks connects to a four-inch square box mounting plate. Two Cat 6A patch cords route from the jacks. Two Cat 6A cables run upward through a one-inch conduit into an open ceiling mount.
SURFACE MOUNTED 2 POSITION BOX WITH 2 CAT 6A JACKS, TYP. OPEN CEILING MOUNT 1" CONDUIT, TYP. (2) CAT 6A CABLES, TYP. 4" SQUARE BOX MOUNTING PLATE (2) CAT 6A PATCH CORDS, TYP.
