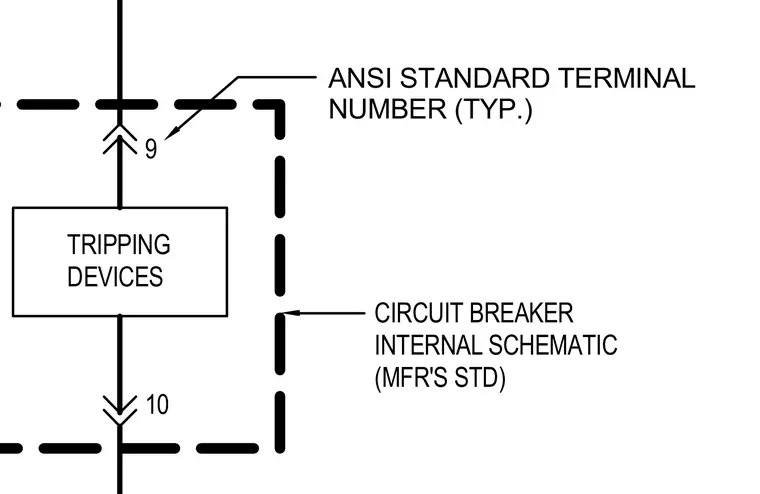

Manufacturer standard circuit breaker internal schematic with ANSI standard terminal numbers typically applied to tripping devices. Terminal connections are indicated with specific numbers such as 9 and 10 along the internal wiring path. The layout provides standard schematic representation for electrical distribution equipment wiring.
CIRCUIT BREAKER INTERNAL SCHEMATIC (MFR'S STD) ANSI STANDARD TERMINAL NUMBER (TYP.) 9 10 TRIPPING DEVICES
