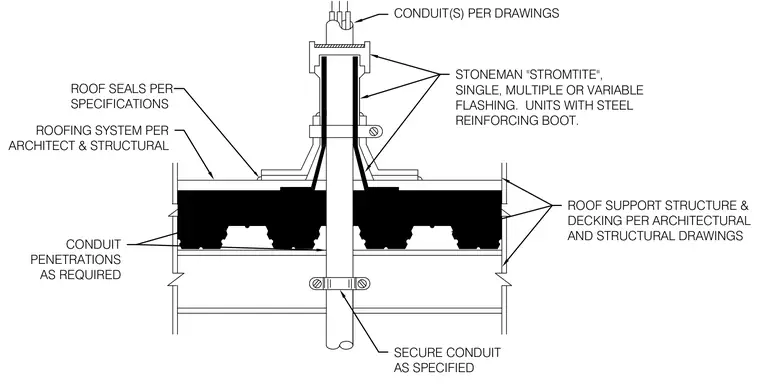

Conduits pass through roof support structures and decking per architectural and structural drawings. A Stoneman Stromtite single, multiple, or variable flashing unit with a steel reinforcing boot provides weatherproofing at the roof surface. Roof seals are installed per specifications alongside the specified roofing system. Conduits are secured as specified both above and below the deck.
ROOF SEALS PER SPECIFICATIONS ROOF SUPPORT STRUCTURE & DECKING PER ARCHITECTURAL AND STRUCTURAL DRAWINGS CONDUIT PENETRATIONS AS REQUIRED STONEMAN "STROMTITE", SINGLE, MULTIPLE OR VARIABLE FLASHING. UNITS WITH STEEL REINFORCING BOOT. SECURE CONDUIT AS SPECIFIED CONDUIT(S) PER DRAWINGS ROOFING SYSTEM PER ARCHITECT & STRUCTURAL
