Electrical · E-T7EP2

Electrical Panel Mounting at Steel Stud Wall Plan

Materials

Steel Timber / Wood

Elements

Walls Floors / Slabs Decks Anchors / Embeds

Connections

Bolted Connection

About this detail

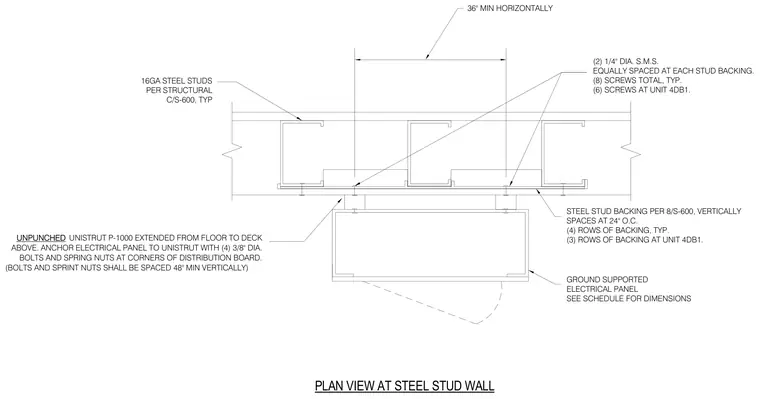

This plan detail shows a ground-supported electrical panel anchored to an unpunched Unistrut P-1000 channel extending from the floor to the deck above. The electrical panel is secured to the Unistrut using four 3/8-inch diameter bolts and spring nuts at the corners of the distribution board, spaced at a minimum of 48 inches vertically. The backing is attached to 16-gauge steel studs with two 1/4-inch diameter sheet metal screws equally spaced at each stud backing, totaling eight screws typically, with six screws at unit 4DB1. Steel stud backing is spaced vertically at 24 inches on center with four rows typically, and three rows at unit 4DB1, maintaining a minimum 36-inch horizontal spacing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
