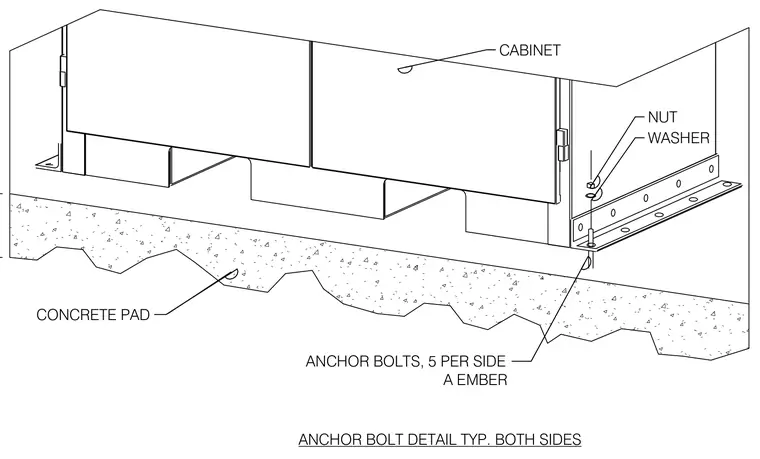

An electrical cabinet secures to a concrete pad with anchor bolts installed along both sides. Five anchor bolts are provided per side, fastening through the base flange using standard nuts and washers.
NUT WASHER CABINET CONCRETE PAD ANCHOR BOLTS, 5 PER SIDE A EMBER ANCHOR BOLT DETAIL TYP. BOTH SIDES
