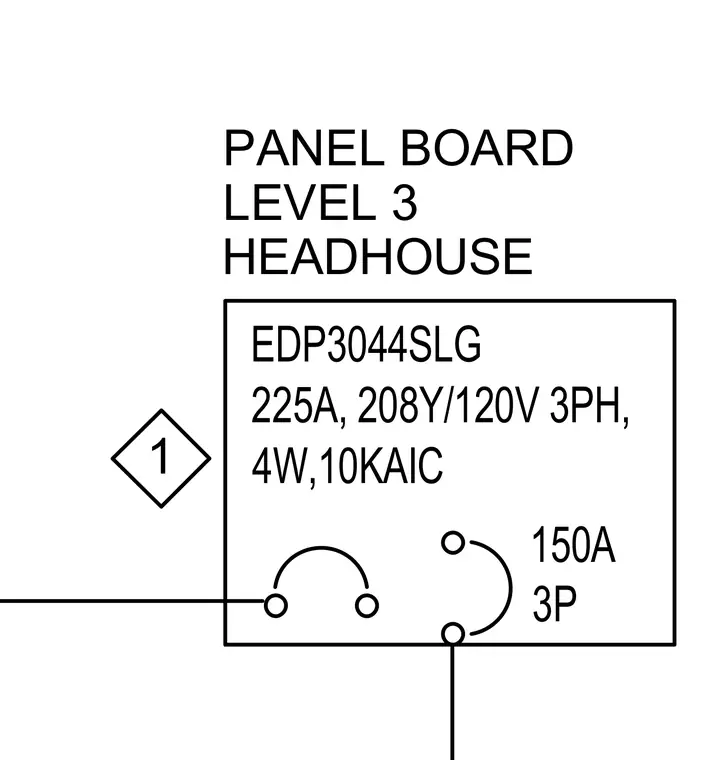

Level 3 Headhouse electrical panel board designation EDP3044SLG configured for two hundred twenty-five amperes, two hundred eight Y over one hundred twenty volts, three-phase, four-wire service with a ten kiloampere interrupting capacity. The unit includes a one hundred fifty ampere, three-pole breaker branch connection.
PANEL BOARD HEADHOUSE LEVEL 3 EDP3044SLG 225A, 208Y/120V 3PH, 4W,10KAIC 150A 3P 1
