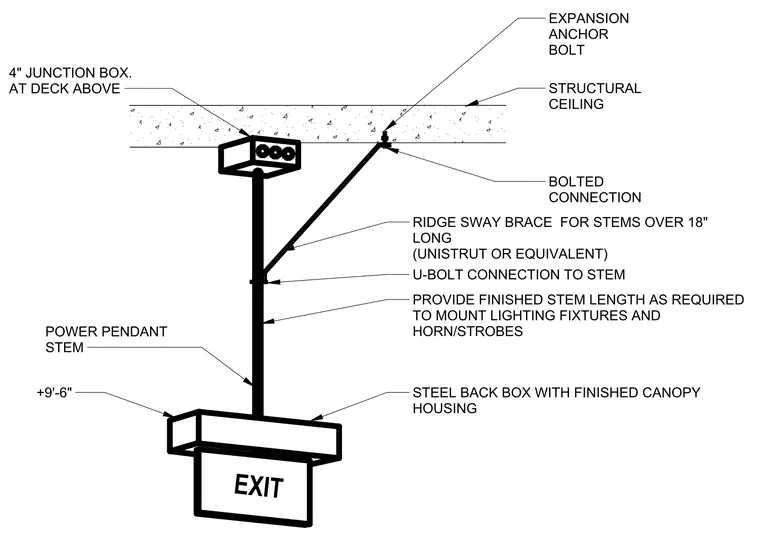

This pendant mounted exit sign hangs from a structural ceiling via a power pendant stem attached to a four-inch junction box at the deck above. A steel back box with a finished canopy housing sits at an elevation of plus nine feet six inches at the bottom of the stem. A ridge sway brace, such as Unistrut or equivalent, is required for stems over eighteen inches long and connects to the stem using a U-bolt connection. The upper end of the sway brace is anchored to the structural ceiling with an expansion anchor bolt and a bolted connection. The finished stem length is provided as required to mount lighting fixtures and horn strobes.
EXIT EXPANSION ANCHOR BOLT STRUCTURAL CEILING BOLTED CONNECTION RIDGE SWAY BRACE FOR STEMS OVER 18" LONG (UNISTRUT OR EQUIVALENT) U-BOLT CONNECTION TO STEM PROVIDE FINISHED STEM LENGTH AS REQUIRED TO MOUNT LIGHTING FIXTURES AND HORN/STROBES STEEL BACK BOX WITH FINISHED CANOPY HOUSING +9'-6" POWER PENDANT STEM 4" JUNCTION BOX. AT DECK ABOVE
