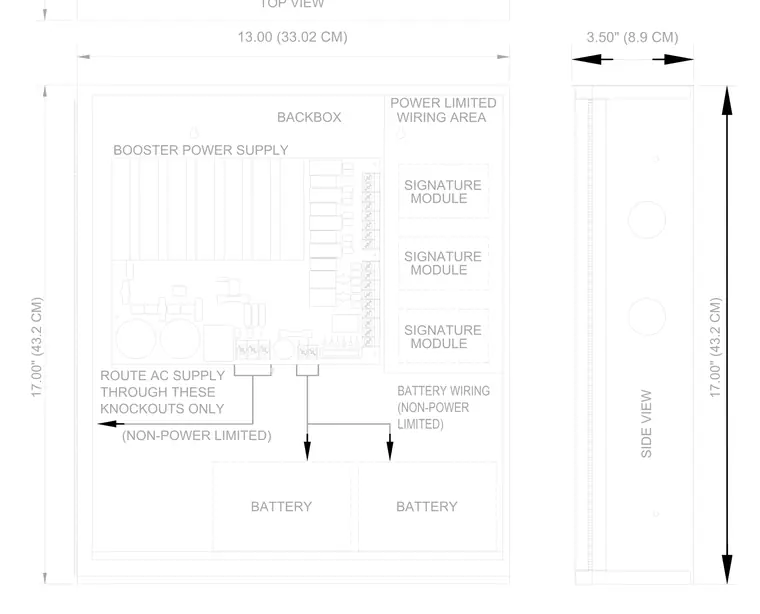

The booster power supply backbox measures seventeen inches high by thirteen inches wide by three and a half inches deep in overall profile dimensions. The backbox houses a booster power supply circuit board alongside a designated power limited wiring area containing signature modules. Lower internal compartments accommodate two batteries with dedicated non-power limited battery wiring. AC supply routing is restricted to designated knockouts at the lower left of the backbox.
17.00" (43.2 CM) TOP VIEW ROUTE AC SUPPLY KNOCKOUTS ONLY THROUGH THESE 17.00" (43.2 CM) SIDE VIEW (NON-POWER LIMITED) BATTERY 3.50" (8.9 CM) BOOSTER POWER SUPPLY BACKBOX BATTERY MODULE SIGNATURE POWER LIMITED WIRING AREA 13.00 (33.02 CM) MODULE SIGNATURE MODULE SIGNATURE
