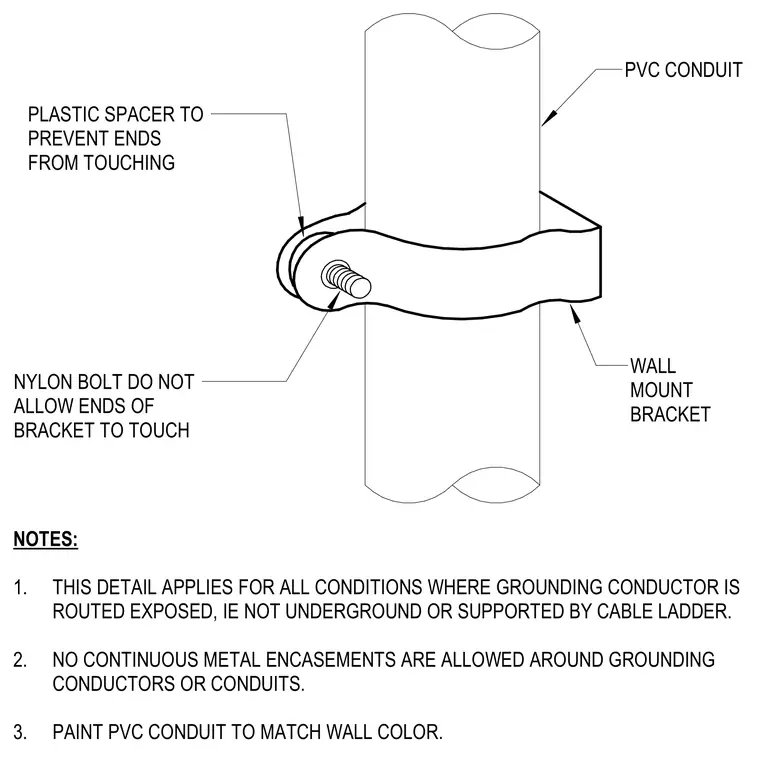

An exposed PVC conduit is supported by a wall mount bracket fastened with a nylon bolt. A plastic spacer is placed between the bracket ends to prevent them from touching and creating a continuous metal loop around the conduit. The nylon fastener ensures non-conductive assembly for exposed grounding conductor runs.
PVC CONDUIT WALL MOUNT BRACKET PLASTIC SPACER TO PREVENT ENDS FROM TOUCHING NYLON BOLT DO NOT ALLOW ENDS OF BRACKET TO TOUCH NOTES: 1. THIS DETAIL APPLIES FOR ALL CONDITIONS WHERE GROUNDING CONDUCTOR IS ROUTED EXPOSED, IE NOT UNDERGROUND OR SUPPORTED BY CABLE LADDER. 2. NO CONTINUOUS METAL ENCASEMENTS ARE ALLOWED AROUND GROUNDING CONDUCTORS OR CONDUITS. 3. PAINT PVC CONDUIT TO MATCH WALL COLOR.
