Electrical · E-SXR7T

One-Line

Materials

Elements

About this detail

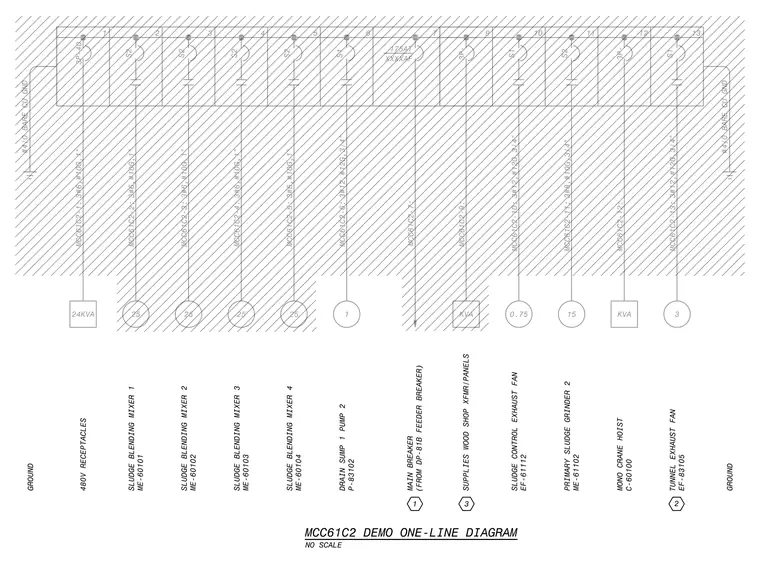

Electrical demolition layout for Motor Control Center MCC61C2 details thirteen feeder circuits supplying equipment such as sludge blending mixers, drain sump pumps, exhaust fans, and a mono crane hoist. The schematic outlines the main breaker fed from DP-81B, along with specific conduit and conductor sizes for each connected load. Grounding details include a #4/0 bare copper ground connection at both ends of the bus. Circuit breakers, switches, and transformer feeds are mapped to their respective mechanical equipment tags.
