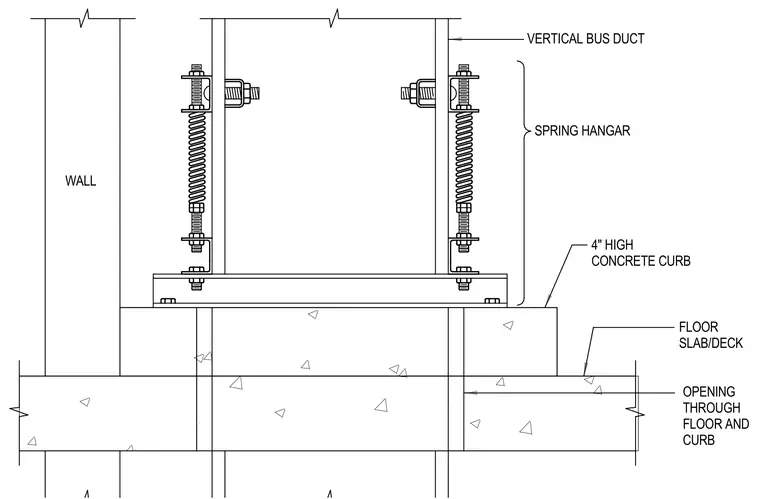

A vertical bus duct passes through an opening in the floor slab and deck, supported by spring hangers anchored to a four-inch high concrete curb adjacent to a wall. The spring hanger assembly connects to the bus duct enclosure using threaded rods and structural brackets, resting on a base channel secured to the concrete curb.
SPRING HANGAR WALL VERTICAL BUS DUCT FLOOR SLAB/DECK OPENING THROUGH FLOOR AND CURB 4" HIGH CONCRETE CURB
